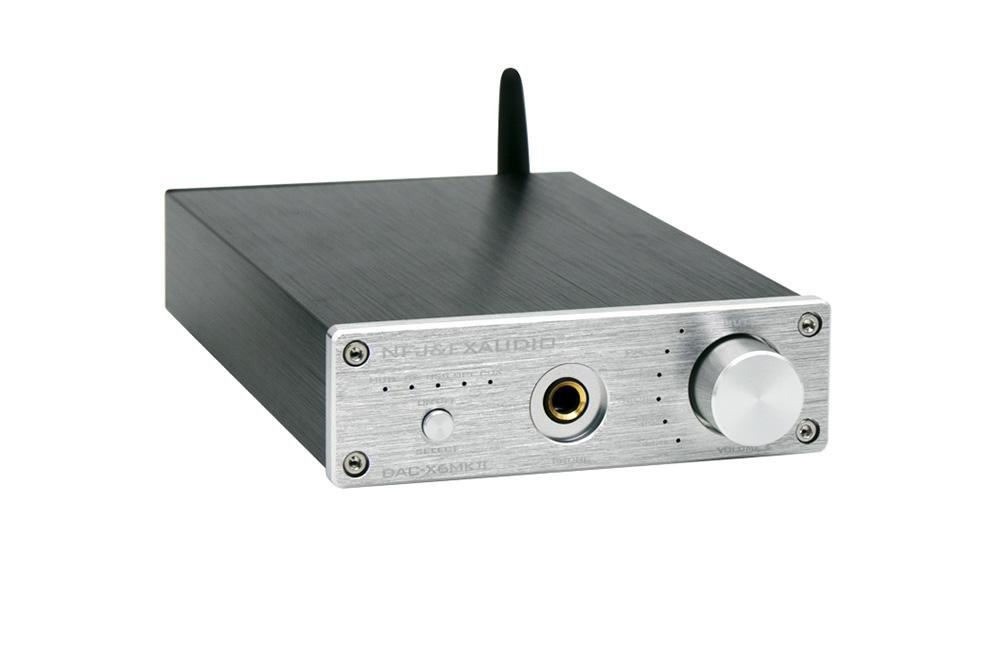

FX Audio DAC-X6 MKII ESS9018 TPA6120 Chip Bluetooth 5.0 APTX SPDIF Coaxial PC-USB RCA Amplifier DAC Decoder
Get 5 points for every eligible dollar you spend on products.
The program is free. Become a SHENZHENAUDIO member and you'll join automatically. After joining the program, you'll receive points as soon as your order ships. Accumulated points is applied the next time you shop at shenzhenaudio.com. It's that simple.
Click here for more information on the program.
DAC-X6MKII is a dac with headphone amplifier, which can be used for preamplifier. Also it is bluetooth receiver. It has Multiful inputs, including bluetooth 5.0 support APTX, SPDIF ,Coaxial, PC-USB and RCA.
Industry's highest performance 32-bit mobile audio DAC with unprecedented dynamic range and ultra low distortion
Supports both synchronous and ASRC (asynchronous sample rate converter) modes
De-emphasis for 32kHz, 44.1kHz, and 48kHz sampling
User programmable filter allowing custom roll-off response
Allows software control MCU of DAC features
High quality original ESS9018 dac chip specification
DAC-X6MKII is not only a dac which can be used preamplifier, but it is headphone amplifier,Using the IC chip TPA6120.
The high quality original IC chip TPA6120specification :
SNR of 128dB A-Weighted.
THD of 112.5dB
Output Voltage Noise of 0.9μVrms at
Gain = 1V/V (16Ω Load)
Power Supply Range: ±5V to ±15V
1300V/μs Slew Rate
Can be configured for Single Ended or Differential Inputs
Independent Power Supplies for Low Crosstalk
DAC technical data specification:
Sampling Rate: 24Bit/ 192kHz
RCA RMS level: 2Vrms
Headphone power output:940mW@16Ω, 900mW@32Ω,700mW@64Ω, 450mW@120Ω
Headphone THD: 0.006%
Headphone SNR: 112dB
Headphone Frequency Response: ±0.5dB(20Hz-20kHz)
Input: Optical,PC-USB,Coaxial, BT
Output: RCA, 6.35mm Headphone
DC power supply: 12V 1A
Unit Size:11.7 x 17.8 x 3.6cm
