SMSL IQ Portable Headphone Amplifier Hi-Res 32bit/768kHz DSD512 Audio Digital to Analog Converter DAC Headphone Amplifier

SMSL IQ Portable Headphone Amplifier Hi-Res 32bit/768kHz DSD512 Audio Digital to Analog Converter DAC Headphone Amplifier

Write a review
Available: In Stock
$139.99
color
Add Wishlist

Secure Checkout

  • Order within
  • Description:

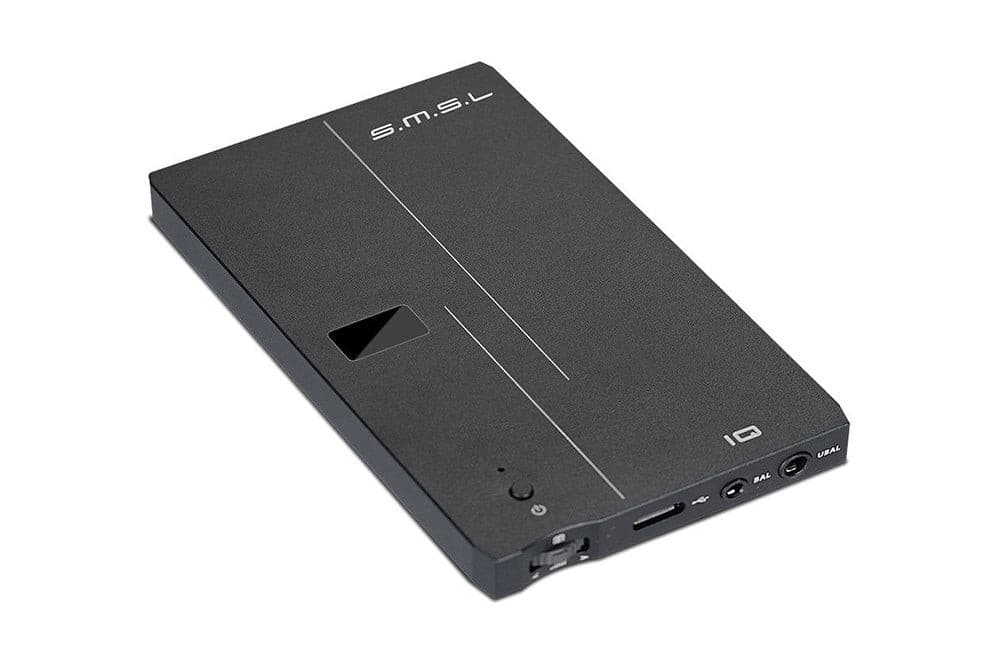

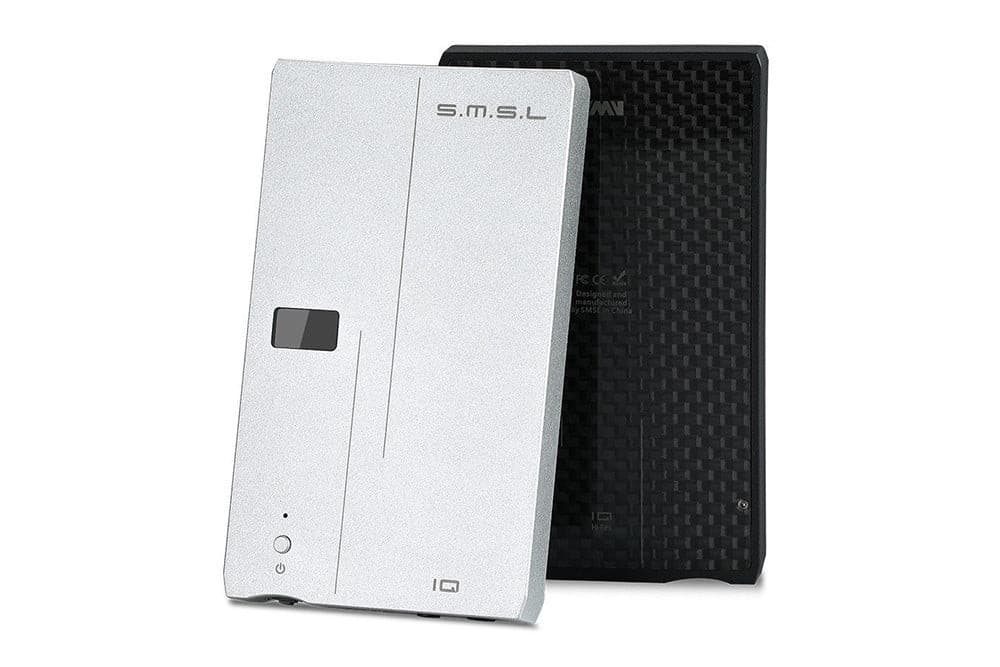

  • SMSL IQ is a small size and portable usb dac and headphone amplifier, with 2.5mm balanced and 3.5mm unbalanced headphone output jack.
  • It uses the 2nd generation of XMOS USB audio solution XCore200XU208, supports PCM sampling rate up to 768Khz and DSD 512.Driver is exclusively customized and supports native DSD, which is very advanced in audio range.
  • Uses two dac chips SABRE9018Q2C from ESS company for better channel separation, with ultra-high dynamic range and ultra-low THD+N
  • Using ultra-low pase noise low clock jitter phase-loop circuit which make the sound is more accurate, powered by ultra-low noise LDO for best performance,Built-in big power headphone amplifier and big capacity battery, charged by DC5V


Note:
Built-in USB1.1 mode, no need driver, compatible with most mobile phones, supports 24bit/96kHz.
And with USB 2.0 mode, you need to install the driver when connecting to the computer(iOS system does not need to install the driver), supports PCM 32bit/768kHz and DSD512.


Specification:
Input: Micro USB
Output: Unbalanced 3.5mm/Balanced 2.5mm(4 poles)
THD+N:0.0003%
SNR:118dB
Dynamic range:125dB
Frequency responese:10Hz-10kHz
Bit depth:16bit,24bit,32bit,1bit
Sampling rate:44.1kHz, 48kHz,88.2kHz,96kHz,176.4kHz,192kHz,352.8kHz,384kHz,705.6kHz,768kHz DSD64, DSD128, DSD256, DSD512
Headphone amplifier output power:
Balanced 32ohm 91mW   64ohm 78mW   150ohm 53mv   300ohm 32mW
Unbalanced 32ohm 55mW   64ohm 33mW   150ohm 21mv  300ohm 12mW
Charge: DC 5V


Contents list:
1x IQ portable dac and headphone amplifier
1x USB A to USB B
1x Micro USB to Micro USB
1x Micro USB to type C

  • Description:
  • SMSL IQ is a small size and portable usb dac and headphone amplifier, with 2.5mm balanced and 3.5mm unbalanced headphone output jack.
  • It uses the 2nd generation of XMOS USB audio solution XCore200XU208, supports PCM sampling rate up to 768Khz and DSD 512.Driver is exclusively customized and supports native DSD, which is very advanced in audio range.
  • Uses two dac chips SABRE9018Q2C from ESS company for better channel separation, with ultra-high dynamic range and ultra-low THD+N
  • Using ultra-low pase noise low clock jitter phase-loop circuit which make the sound is more accurate, powered by ultra-low noise LDO for best performance,Built-in big power headphone amplifier and big capacity battery, charged by DC5V


Note:
Built-in USB1.1 mode, no need driver, compatible with most mobile phones, supports 24bit/96kHz.
And with USB 2.0 mode, you need to install the driver when connecting to the computer(iOS system does not need to install the driver), supports PCM 32bit/768kHz and DSD512.


Specification:
Input: Micro USB
Output: Unbalanced 3.5mm/Balanced 2.5mm(4 poles)
THD+N:0.0003%
SNR:118dB
Dynamic range:125dB
Frequency responese:10Hz-10kHz
Bit depth:16bit,24bit,32bit,1bit
Sampling rate:44.1kHz, 48kHz,88.2kHz,96kHz,176.4kHz,192kHz,352.8kHz,384kHz,705.6kHz,768kHz DSD64, DSD128, DSD256, DSD512
Headphone amplifier output power:
Balanced 32ohm 91mW   64ohm 78mW   150ohm 53mv   300ohm 32mW
Unbalanced 32ohm 55mW   64ohm 33mW   150ohm 21mv  300ohm 12mW
Charge: DC 5V


Contents list:
1x IQ portable dac and headphone amplifier
1x USB A to USB B
1x Micro USB to Micro USB
1x Micro USB to type C
