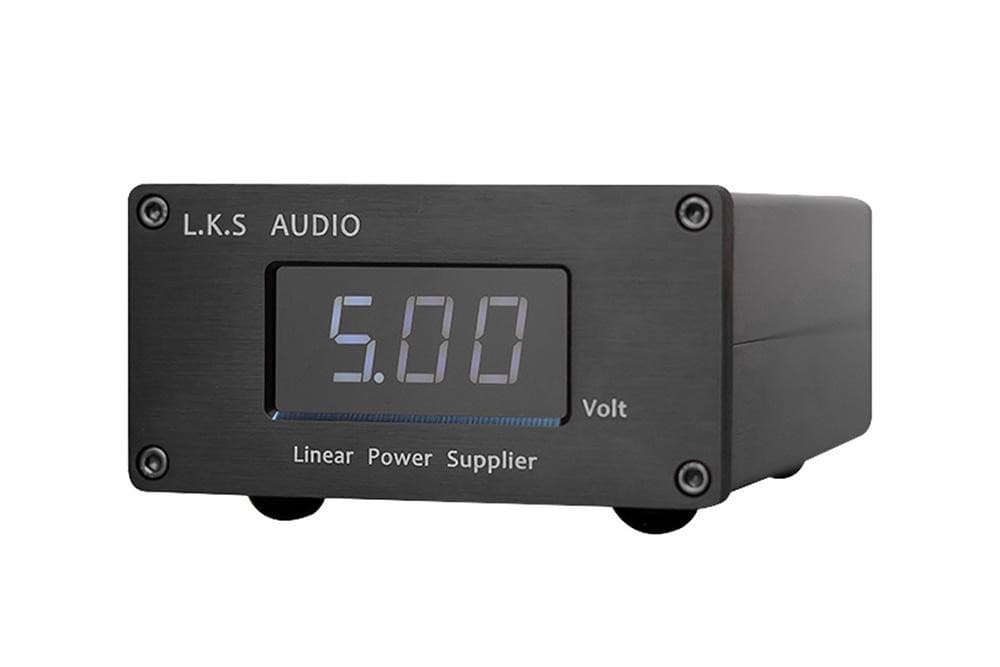

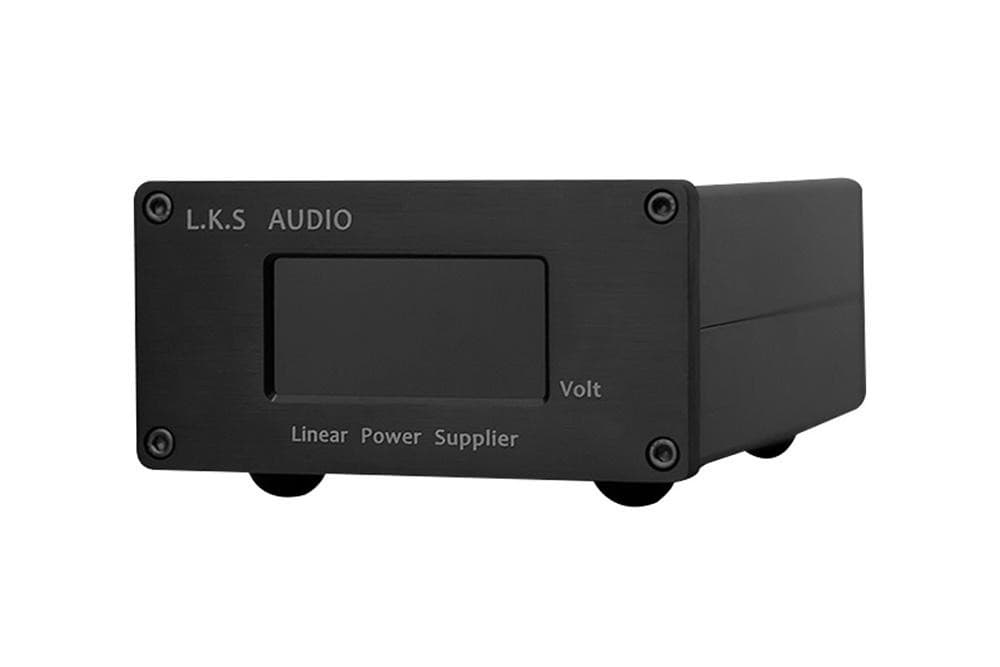

L.K.S Audio LKS LPS-25-USB 5V Output Low Noise Linear Power Supply
Get 5 points for every eligible dollar you spend on products.
The program is free. Become a SHENZHENAUDIO member and you'll join automatically. After joining the program, you'll receive points as soon as your order ships. Accumulated points is applied the next time you shop at shenzhenaudio.com. It's that simple.
Click here for more information on the program.
The standard output voltage 5.00V,the user can through the fine-tuning Adj hole on the reverse of the output voltage,the adjustment range is usually 10% above or below.
The maximum output current 3.5A.The measured power light and loaded with 3.5A,less than 5 mv output voltage fluctuations

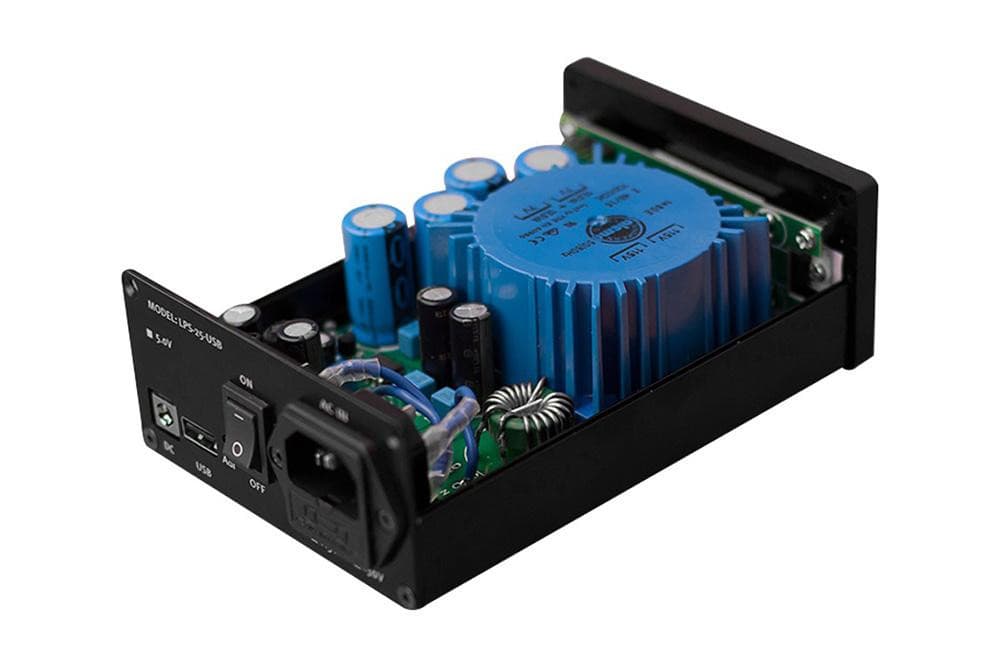

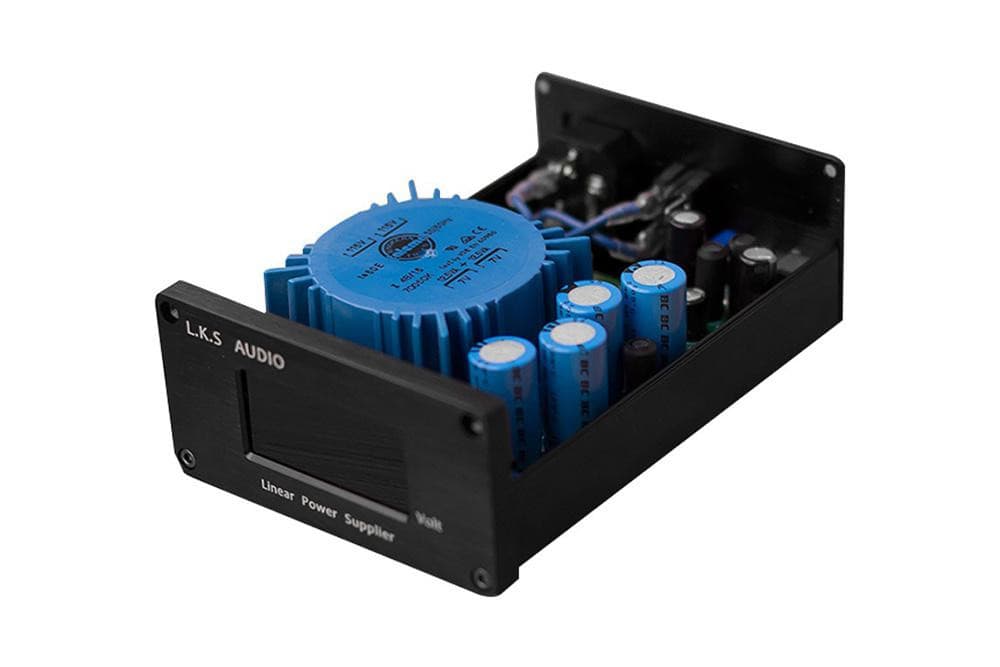

Use Talema 25 va high quality seal transformer
Power MOS+high precision benchmark+op-amp servo power,high stability,low noise
Ultistage CLC filter circuit
Accurate to 0.01V voltage LED display,real-time observation of the output voltage,pure white leds,brightness moderate
Equipped with fine-tuning resistance can adjust output voltage precision
Materials are selected brands and models,such as Talema transformer,philips large current ultra-high speed rectifier diode,Vishay BC(philips) capacitance,panasonic FC,FM capacitance,the precision of 0.1% floating resistance at low temperature,IR high power low resistance MOS tube,large current winding inductance filter and so on.
USB 5V and DC5.5/2.1 mm double output are independent of the LC filter circuit apart (internal)
Net weight:1.03 KG
This kind of low noise linear power supply is very suitable for use in a high demand for power supply occasions, such as:
Various need usb powered usb decoder, such as XMOS, Amanero usb interface, and so on
The mobile hard disk, digital set-top boxes, high-definition players, etc
Mobile phones,tablet charger
0.5m double DC5.5/2.1 the power cord to a root
1.5 m ordinary gb power line
