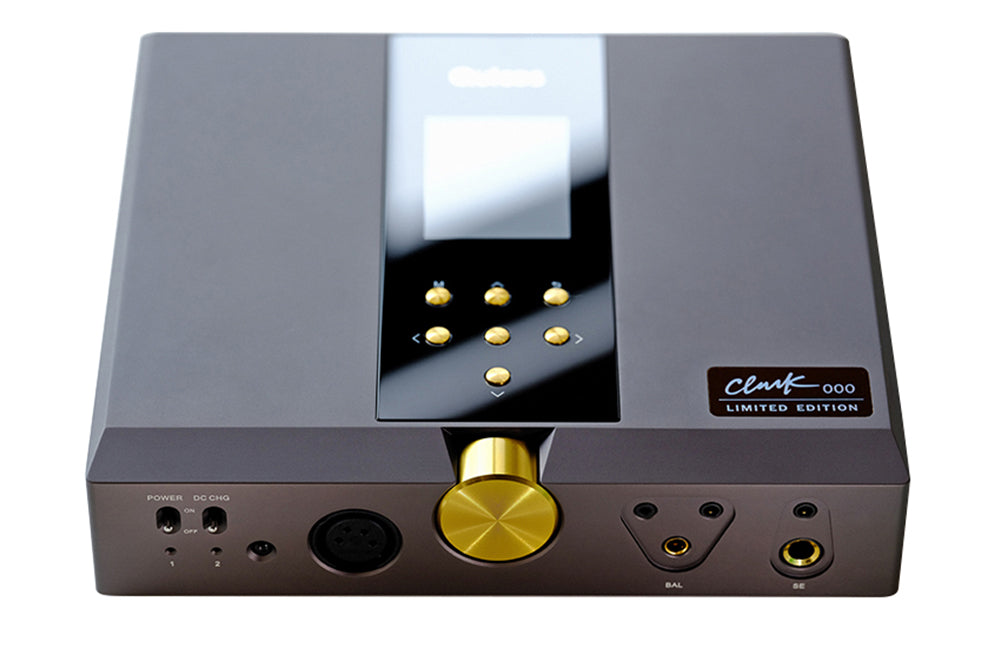

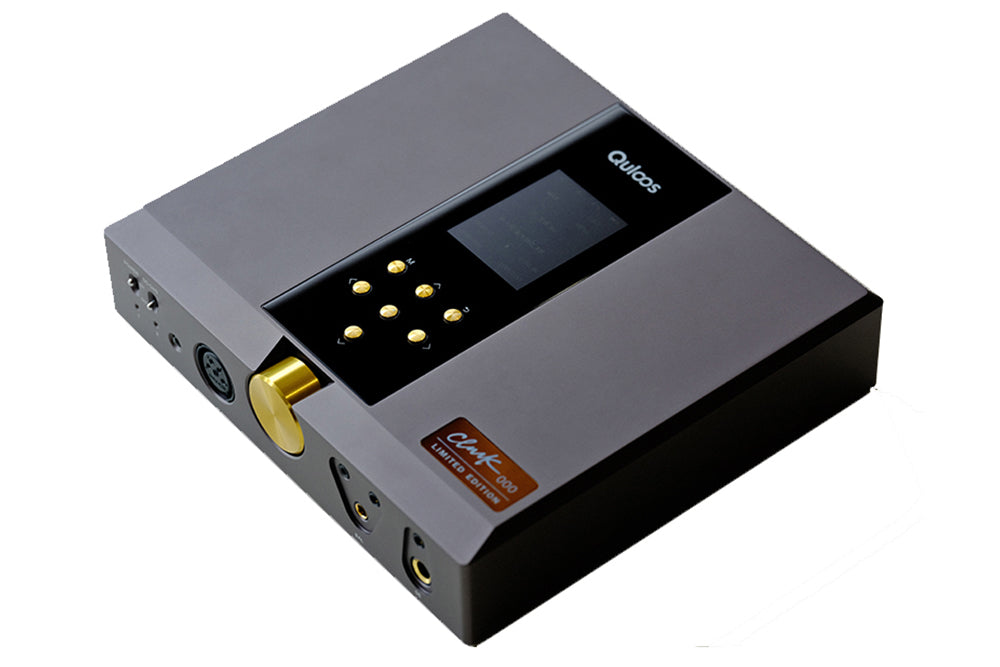

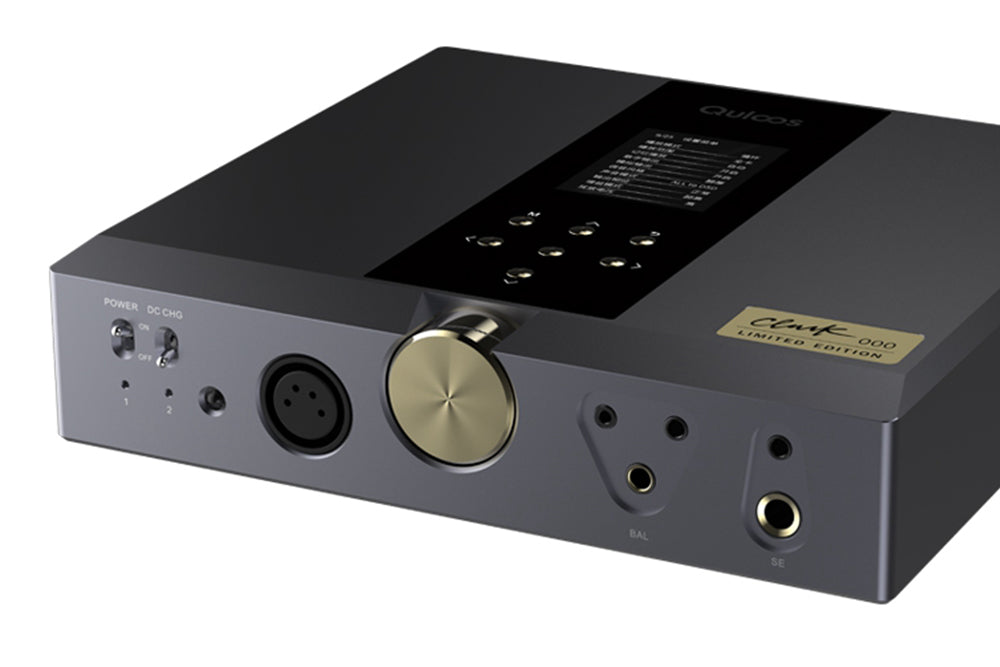

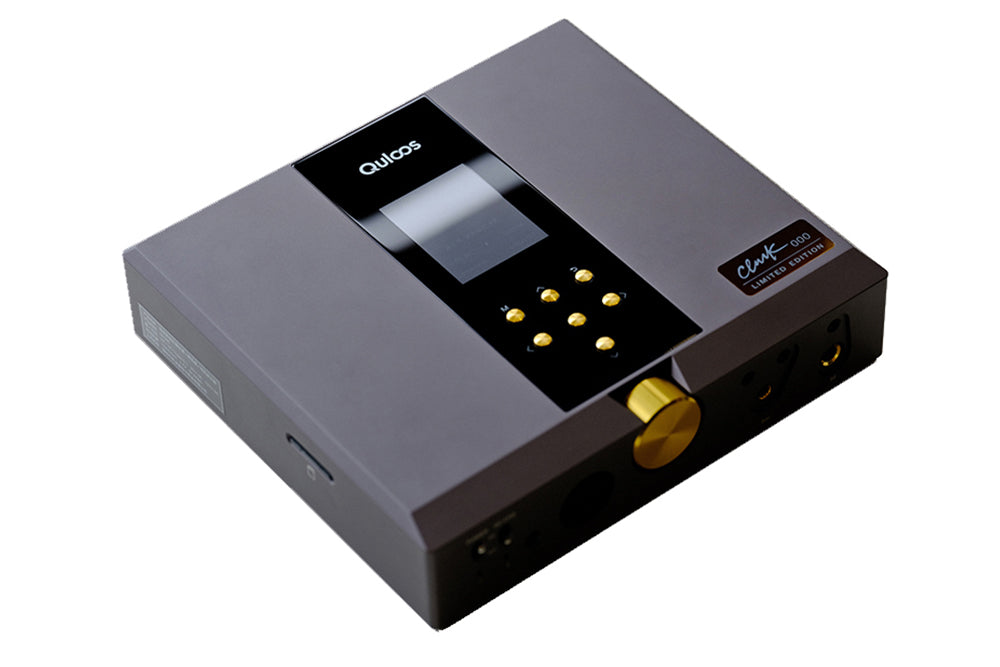

QULOOS QLS QA390 LE ES9038PRO Desktop Music Player & DAC
-
World Free Shipping & Returns
QULOOS QLS QA390 LE ES9038PRO Desktop Music Player & DAC
Join the Discord Discussion
Talk with DISCORD
Want an expert opinion?
Talk with Our Team
Follow us on official Twitter
Follow us on TwitterDescriptions:
● Internal playback storage: one external SD card or TF card with card cover, in FAT32 format, the upper limit is 512GB.
● The supported code rate: 16- 32Bit, 44.1KHz ~ 352.8KHz, DSD64 ~ DSD128.

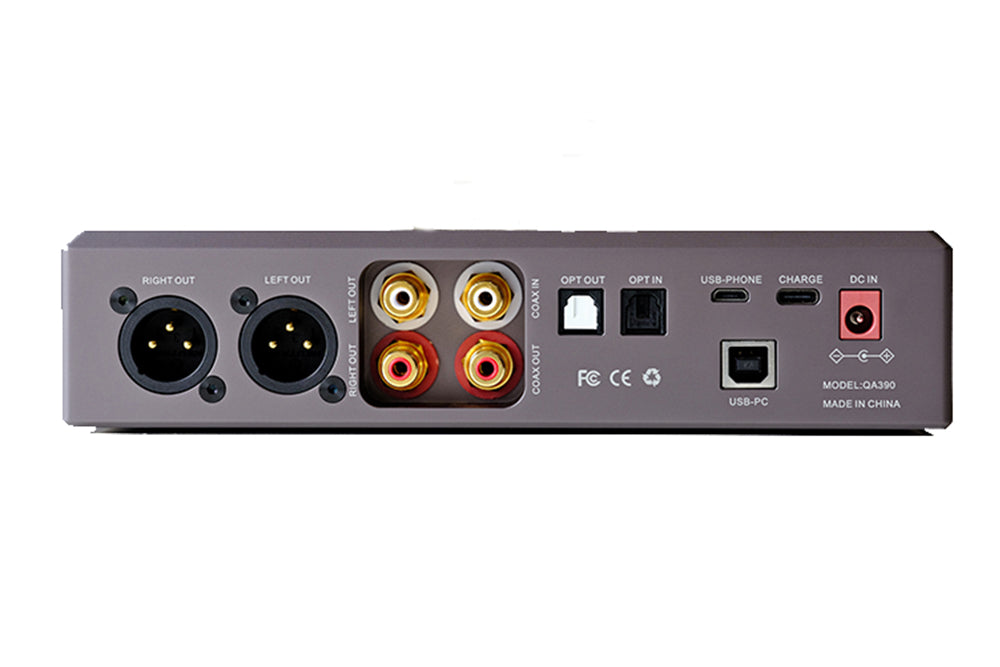

●USB interface-USB B port: Adopting authorized Italian interface Combo 384 and optimize hardware design, supports 32Bit/384KHz PCM and DSD256.
●USB interface -Micro port: Using SA9227 interface, iOs phones and PC do not need camera kits, with 32Bit/384KHz PCM and DSD128.
● Bluetooth: Bluetooth 5.0, supports AAC and SBC.
● Coaxial input: 75Ω matched impedance, supporting 24Bit/ 192KHz and DSD64 (DoP).
● Optical input: supports 24Bit/ 192KHz and DSD64 (DoP).
● Coaxial output: 0.5Vp- p75Ω, supports 24Bit/ 192KHz and DSD64 (DoP).
● Optical output: supports 24Bit/ 192KHz and DSD64 (DoP).
Analog output parameters:
Frequency response: 20-20KHz.
SNR: 122dB.
Dynamic range: 121dB.
Separation degree: 120dB.
Distortion: 0.0005%.
Low output level:
RCA (L&R) 2.5V (preamp closed).
XLR (L&R) 5.0V ((preamp closed)
SE (unbalanced) Max 10.5Vrms (high voltage in amp, ultra-high gain, 600Ω load).
BAL (balanced) Max 21Vrms (high voltage in amp, ultra-high gain, 600Ω load).
●The supported impedance of headphones: 80-600Ω.
● Decoding chip: ES9038PROx 1.
● Volume control (including preamp volume control): PGA2311UA analog program-controlled.
● Reference clock jitter: 0.038 picoseconds (38 femtoseconds).
● Charging interface: Type-C port or DC port, which supports fast charging and is compatible with QC standards.
● External power supply: DC 5.5*2.1 port, which can also be charged at the same time (panel switch).
● Battery life: about 8.5 hours (depending on setting, music format and load).
● Charging time: Type-C standard: 8~ 9 hours, Type-C fast charging /DC port: 4~ 5 hours.
● The Material of unit & remote control: Aluminum CNC
● Product weight: 3.1kg (Included the package)
● Size: 20cm X 18cmx4.45cm,
package size: 33cm X 27cm x 9cm
Package:
1. QA390 limited version *1
2. SanDisk 64GB TF card with card set) *1
3. USB3.0 card readers *1
4. USBAD to port B cable *1
5. TYPE-C charging cable *1
6. External power supply (charging) *1
7. Infrared remote controller *1
Single-ended headphone port rated output power:
32Ω, 1000mW/ch high voltage, high gain
300Ω, 360mw/ch high voltage, super high gain
600Ω, 180mW/ch high voltage, super high gain
Balance the headphone port rated output power:
32Ω, 1300mW/ch voltage, high gain
300Ω, 1200mW/ch high voltage, super high gain
600Ω, 720mW/ch high voltage, super high gain
